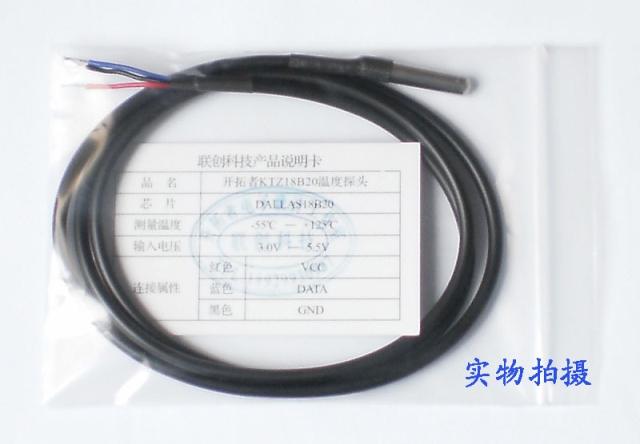

Waterproof DS18B20 stainless steel encapsulated temperature sensor 1M Cable

Waterproof stainless steel encapsulated temperature sensor (DS18B20)

Please note: Large Quantities may have a longer lead time. Please email for details:terry@yourduino.com.

With 1 M cable. Also available with 10M long cable HERE and 4M cable HERE

 Probe with temperature sensor  DS18B20 (DETAILED INFORMATION HERE)

This is an electronic thermometer which has high accuracy over a wide range (accurate to ±0.5°C over the range of -10°C to +85°C). You can locate these thermometer chips up to 100M away from your Arduino, over just 2 wires. Multiple thermometers can be connected on the same wire because every one has it's own internal address.

The chip is encapsulated in epoxy and a flowing type heat shrink tube is used to seal the cable to the metal package.

High-quality stainless steel anti-rust waterproof package (Exact SS Type is not known)

Cable material is PVC, temperature rating 100C or less.

Stainless steel housing (6 * 30mm), overall length to end of wire 100cm

Exposed straight round Stainless Steel section about 19mm before rounded end starts.

After rigorous testing of each probe it is individually wrapped, except quantity shipments

3.0V ~ 5.5V power supply

9 to 12-bit adjustable resolution

Wide temperature range -55 ℃ ~ +125 ℃

No external components,  unique "1-wire" interface

Output leads: red (VCC), blue or white or yellow (DATA), black (GND)
