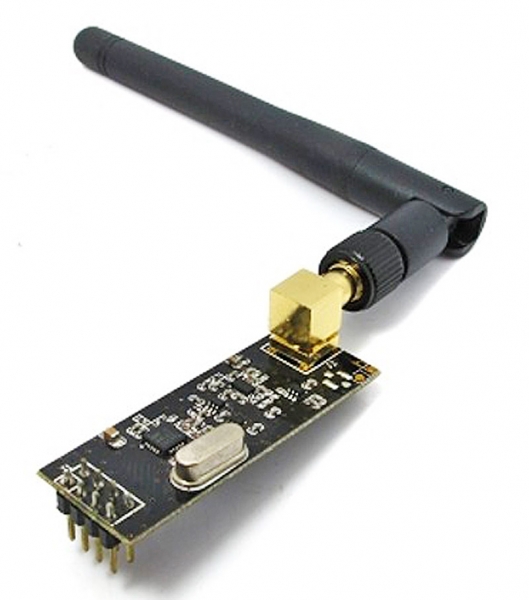

2.4GHz Transceiver w/ Power Amp +PreAmp nRF24L01+

2.4GHz Transceiver w/ Power Amp +PreAmp nRF24L01+ (Price Reduced!)

Please note: Large Quantities may have a longer lead time. Please email for details:terry@yourduino.com.

This uses the latest P or "+" version chip and adds both a Transmitter Power Amplifier and a Low Noise Receiver Preamplifier for even longer range.

See our How-To Pages on these 2.4GHz Modules

 NOTE: Needs an Antenna!  We have a low-cost one here:

  NOTE: See this base module with 3.3V regulator for this transceiver.

 Parameters

• Voltage: 3-3.6V (recommended 3.3V) V
• Maximum output power: +20dBm  (100 mW)
• Transmit mode current(peak): 115Ma
• Receive Mode Current(peak): 45Ma
• Power-down mode current: 4.2Ua
• Receiving sensitivity: -92dBm(2Mbps)/-95dBm(1Mbps)/-104dBm(250kbps)
• PA gain: 20Db
• LNA gain: 10Db
• LNA Noise figure: 2.6Db
• Antenna Gain (peak): 2Dbi
• Transmission distance(Open area): 520m (2Mbps)/750m(1Mbps)/1000m (250Kbps)
• Size: 45.54mm * 16.46mm
