YourDuino MEGA2560 R3 (Arduino MEGA Compatible) PRICE Reduced!

Open Source Copy of Arduino MEGA 2560 R3 ( Revison 3) (ATmega2560-16AU AVR chip)

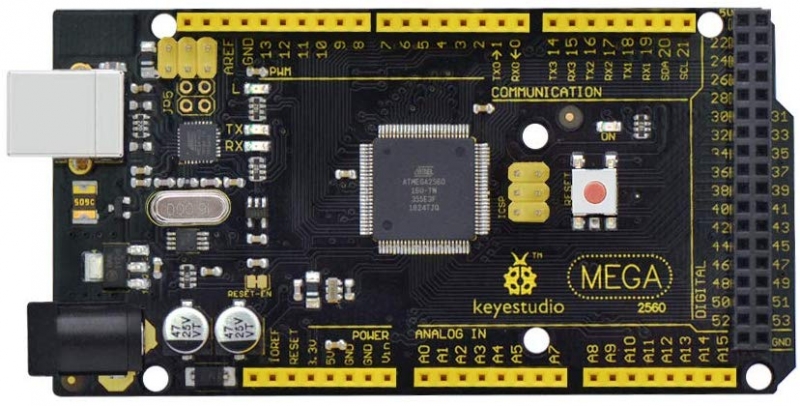

This version of the Arduino has much more memory and many more I/O pins. Click on photo to see larger version. THEN hover over upper right to see more photos.

The R3 version has added pins for use with newest shields that fit the Arduino DUE.  It can be used anywhere the regular 2560 was used.The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins.

SCHOOLS please note: Quantity discounts shown are your applicable discount;. It is not in addition to the Educational Discount. You will get the 25 quantity price on smaller quantity with Educational Discount.

See detailed information on the Mega HERE:

• Operating Voltage    5V
• Input Voltage (recommended)    7-12V
• Input Voltage (limits)    6-20V
• Digital I/O Pins    54 (of which 14 provide PWM output)
• Analog Input Pins    16
• DC Current per I/O Pin    40 mA
• DC Current for 3.3V Pin    50 mA
• Flash Memory    256 KB of which 8 KB used by bootloader
• SRAM    8 KB
• EEPROM    4 KB
• Clock Speed    16 MHz
