HM-10 Bluetooth Low Energy Module

HM-10 BLE (Bluetooth Low Energy) Module based on CC2541 chipset.

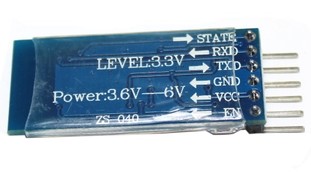

HM-10 module is supplied as pre-soldered on carrier board. The carrier board has headers for easy connection and prototyping needs.

How-To and detailed information HERE

Features

CC2541 Bluetooth Chip Solution
Fully Qualified Bluetooth V4.0 Ble
Full Speed Bluetooth Operation with Full Piconet Support and Scatternet Support
Incredible small size with 3.3V input, and RoHS Compliant
UART interface and with baudrate setup function

Technical Specifications

Operating Voltage: 3.6V to 6V
IO Voltage level: 3.3V
Bluetooth Standard: V4.0 BLE (Bluetooth Low Energy)
Working frequency: 2.4GHz ISM band
Security: Authentication and encryption
Size:37.6mm x 16.6mm x 4.2 mm (without headers)
Header Pin pitch: Standard 0.1 inch (2.54mm)
