ESP-32 Module: WIFI-Bluetooth-Analog/digital IO

ESP-32 Module: WIFI-Bluetooth-Analog/digital IO

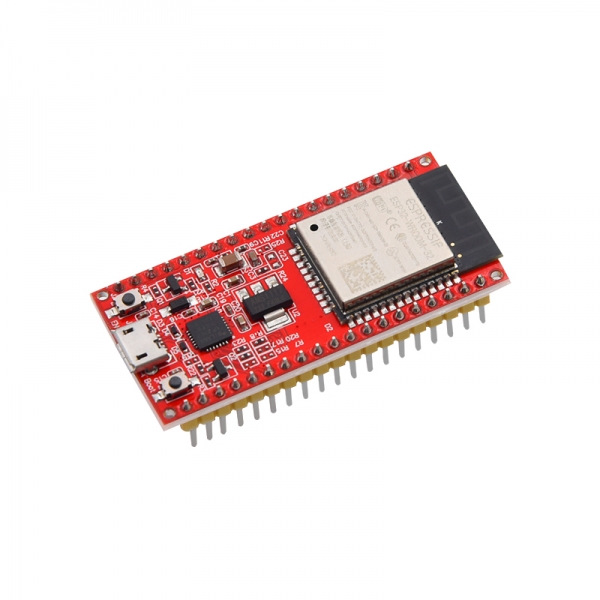

This ESP32 core board is a Mini development board based on the ESP-WROOM-32 module.

SEE OUR HOW_TO PAGES HERE   CLICK on PHOTO FOR LARGER VERSION; CLICK AGAIN ON UPPER RIGHT FOR MORE PHOTOS

The board has brought out most I/O ports to pin headers of 2.54mm pitch. These provide an easy way of connecting peripherals according to your own needs.
When it comes to developing and debugging with the development board, the both side standard pin headers can make your operation more simple and handy.
The ESP-WROOM-32 module is the industry's leading integrated WiFi + Bluetooth solution with less than 10 external components.

It integrates antenna switch, RF balun, power amplifiers, low noise amplifiers, filters and power management modules.

Technical Details :

•
  Microcontroller: ESP-WROOM-32 module
  USB to Serial Port Chip: CP2102-GMR
  Operating Voltage: DC 5V
  Operating Current: 80mA (average)
  Current Supply: 500mA (Minimum)
  Operating Temperature Range: -40℃ ~ +85℃
  WiFi mode: Station/SoftAP/SoftAP+Station/P2P
  WiFi protocol: 802.11 b/g/n/e/i (802.11n, speed up to 150 Mbps
  WiFi frequency range: 2.4 GHz ~ 2.5 GHz
  Bluetooth protocol: conform to Bluetooth v4.2 BR/EDR and BLE standards
  Dimensions: 55mm*26mm*13mm
  Weight: 9.3g
