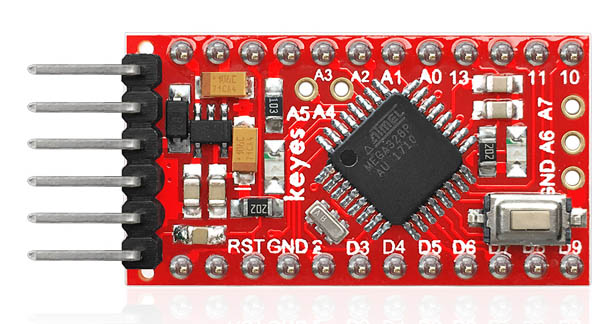

YourDuino Pro Mini (328 5V 16Mhz) UNSOLDERED Pins

Open Source Copy of Arduino Pro Mini (Arduino Pro Mini Compatible)

This has pins included but not soldered, for custom and miniature applications

ATMEGA 368 5V 16Mhz

MORE PHOTOS: Hover over upper right of Larger Image photos, click on NEXT

See our programmer for the ProMini HERE.

The Arduino Site has this Users Guide:

A nice PinOut / Information page is HERE

The schematic is here:

NOTE: The Pro Mini is designed for applications that need a very small size (fits in a ping-pong ball). Users will need to carefully understand the programming connections.

 Technical parameters:

• 14 Digital Input / output port RX, TX, D2 to D13,
• 8 analog input port A0 to A7
• 1 TTL level serial transceiver port RX / TX
• 6 PWM port, D3, D5 , D6, D9, D10, D11
• The Atmel ATmega328P-AU MCU
• supports Serial Download
• Supports external 5.0V to 12V DC power supply
• Can be 9V battery-powered
• clock frequency of 16MHz
• Size: 33.3 * 18.0 (mm)
