YourDuino MEGA2560PLUS (UpgradedPower: 5V 2A)

YourDuino MEGA2560PLUS Upgraded Power version (5V 2A available with external power) compatible with Arduino MEGA 2560 R3

The MEGA version of the Arduino has much more memory and many more I/O pins. Click on photo to see larger version. THEN hover over upper right to see more photos.

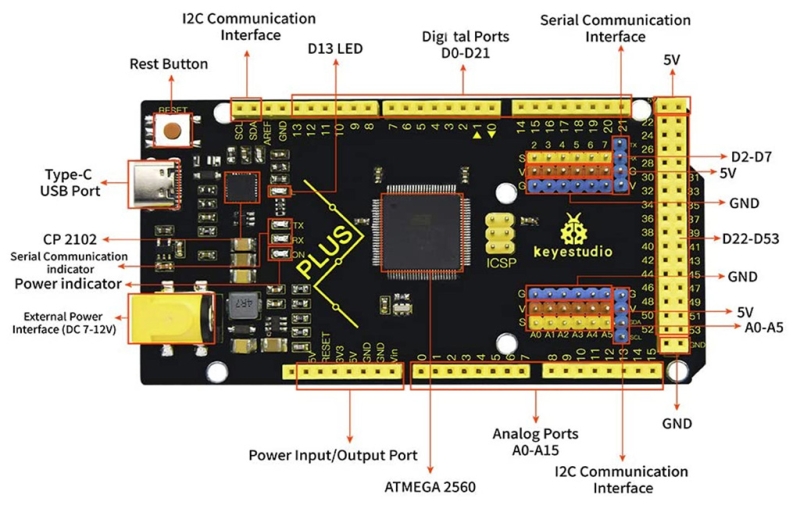

• The MEGA Plus board works like the Arduino Mega R3 2560 but it is more powerful and has more pins
• The USB-to-Serial chip of this board is the stable and compatible CP2102
• The USB connector is Type C USB Port
• When using the external power capability, 5V output current is up to 2.0 amps which can drive drive high-current devices like servos and motors
• There are additional communication interfaces including:
  • IIC communication interface (4-pin for displays etc)
  • Serial communication interfaces):
    • Serial2 (D17 is RX2, D16 equals to TX2)
    • Serial3 (D15 is RX3, D14 is TX3)
    • D0 and D1 are connected to USB interface for program loading
• External interrupt pins

Yellow text on black board makes identifying pinsets easy. FCC and CE registration information is available

The R3 version has added pins for use with newest shields that fit the Arduino DUE.  It can be used anywhere the regular 2560 was used.The Mega 2560 R3 also adds SDA and SCL pins next to the AREF. In addition, there are two new pins placed near the RESET pin. One is the IOREF that allow the shields to adapt to the voltage provided from the board. The other is not connected and is reserved for future purposes. The Mega 2560 R3 works with all existing shields but can adapt to new shields which use these additional pins

The MEGA 2560 is designed for more complex projects. With 54 digital I/O pins, 16 analog inputs and a larger space for your sketch, it is the recommended board for 3D printers and robotics projects. This gives your projects plenty of room and opportunities.

SCHOOLS please note: Quantity discounts shown are your applicable discount;. It is not in addition to the Educational Discount. You will get the 25 quantity price on smaller quantity with Educational Discount.

See detailed information on the MegaPLUS HERE
