MakerSpaceESP32 (Free USB )

Advanced ESP32 based Microcomputer. Advanced Power capability, 3-pin connectors for all I/O.

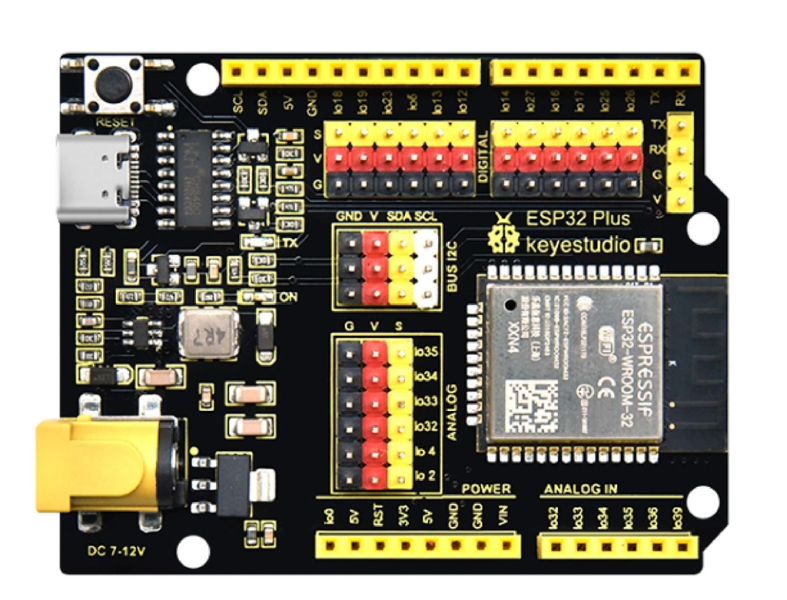

(Click on Image above for more detail)

Description:

This is a universal  development board based on ESP32.   It has WIFI and Bluetooth Communications integrated on its ESP32-WOROOM-32 module,

It is physically compatible with Arduino.  It has 3-pin connectors for all ESP32 pins and a 4-pin I2C bus connector.

It has a hall sensor, high-speed SDIO/SPI, UART, I2S as well as I2C.

It can be programmed with the standard Arduino IDE system. The Board Manager includes support and libraries. NOTE: Set the BOARD in your Arduino IDE to "ESP32 Dev Module"

We have extensive How-To and examples HERE (click)

Specifications:

• Voltage: 3.3V-5V
• Current Output: 1.2A(maximum)
• Maximum power Output: 10W
• Working temperature: -10℃~50℃
• Dimension: 69*54*14.5mm
• Weight: 25.5g
• Environmental protection attributes: ROHS

ORDERING NOTE:

Larger quantities may require 2 to 3 weeks lead time. Email terry@yourduino.com  SCHOOLS and WHOLESALERS please note: Quantity discounts shown are your applicable discount;. It is not in addition to the Educational/Wholesale Discount. You will get the 25 quantity price on smaller quantity with Educational/Wholesale Discount.

FCC Certification ID: CST-FV140423070  RoHS
